Spring Hangers: Selection, Setting, Inspection and the Failures They Prevent

01

The spring hanger as an active boundary condition

Piping grows when it heats. Where that growth has a vertical component, a rigid support either lifts off and stops carrying weight, or holds the pipe and resists the growth. Neither is acceptable near sensitive equipment. A spring support solves the problem by carrying weight while permitting calibrated vertical movement.

The analysis that sized the spring assumed a stiffness. When a spring bottoms out, tops out, seizes, or is left pinned, its effective stiffness jumps by orders of magnitude. The boundary condition changes, the stiffness matrix of the system changes, and the reactions redistribute. A spring problem does not stay at the spring.

• Thermal-growth loads redirected into the nearest rigid restraint or equipment nozzle.
• Deadweight dumped onto adjacent supports when a spring tops out or a shoe lifts off.
• Shifted natural frequencies and mode shapes that can bring a span toward an excitation frequency.
• Cyclic bending at welds, branch connections and small-bore fittings.
• Flange rotation and loss of gasket stress on one quadrant, producing leaks at temperature.

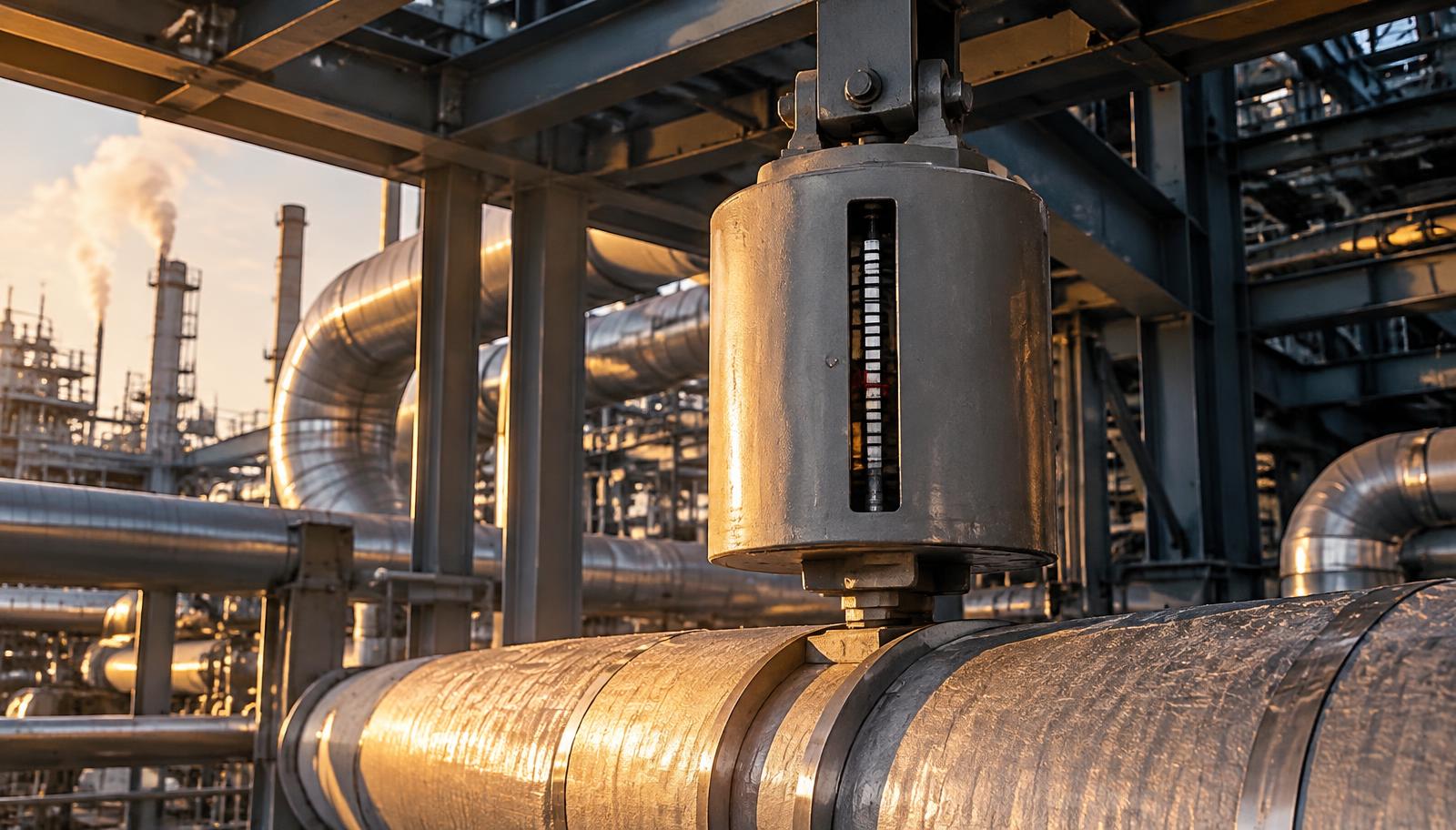

The indicator on the spring is not decoration. It is one of the few places where the piping stress analysis becomes directly visible in the field.

02

Support taxonomy: functions that are routinely confused

Many field problems begin with a misunderstanding of what a support is supposed to do. A guide is not a restraint for weight. A snubber is not a spring. A rigid rod hanger adjacent to a spring takes everything the spring gives up. Inspectors and planners should know the intended function before they judge the condition.

03

Variable spring arrangements

Variable springs are supplied in standard physical arrangements that differ by how the canister connects to structure and pipe. Manufacturers commonly designate these as Types A through G. Nomenclature varies by supplier, so the hanger schedule and manufacturer drawing, not a generic letter, define what is installed.

04

Engineering mechanics: variable versus constant

A variable spring follows Hooke's law. Its support force changes by ΔF = k·Δy as the pipe moves, where k is the spring rate and Δy the vertical travel. The design objective is that the spring carries the calculated operating load in the hot, steady-state position, so the analysis assumption holds when the plant is running. The cold, installed load is back-calculated from that hot load. For pipe moving up, the spring extends and its force falls: F_cold = F_hot + k·Δy. For pipe moving down, the spring compresses further: F_cold = F_hot − k·|Δy|.

Load variability, |F_hot − F_cold| divided by F_hot, measures how much load the spring sheds or picks up between conditions. MSS SP-58 and ASME B31.1 practice typically limit variable spring variability to 25 percent. That limit is a ceiling, not a target. Lines connected to rotating equipment frequently need tighter values, and many owner specifications set lower limits or require constant supports near machinery nozzles, because the load the spring sheds is load the nozzle receives.

A constant support uses a lever, cam or linkage so the moment produced by the spring balances the pipe load throughout travel. ASME B31.1 and MSS SP-58 typically limit the load deviation of constant supports to about 6 percent across the working range. Constant supports are selected where travel is large, where variability would be excessive, or where high-temperature critical service and nozzle sensitivity make load change unacceptable. They cost more, weigh more, and carry mechanisms that need inspection.

05

The sizing sequence: from stress model to hardware

Spring selection is not a catalog exercise. It begins in the piping flexibility model, where sustained, operating, occasional and hydrotest cases establish loads and movements, and it ends with a manufacturer selection that fits real hardware into real geometry.

• 1. Model the system in Hexagon CAESAR II or Bentley AutoPIPE with correct weights, including insulation, valves, actuators and contents.
• 2. Run the hanger design algorithm to establish operating load and vertical travel at each spring location, with adjacent restraints active.
• 3. Add travel margin so the working range never reaches the casing limits; owner specifications commonly require margin above calculated travel at both ends.
• 4. Select spring size from load and spring range from travel; check variability against the governing limit and the connected equipment.
• 5. If variability or nozzle load is unacceptable, use a longer-range spring with a lower rate, or a constant support.
• 6. Check the hydrotest case. Water-filled vapor or steam lines can weigh several times their operating weight; specify travel stops or temporary supports rated for it.
• 7. Complete the selection in manufacturer engineering software such as LISEGA LICAD or the supplier's equivalent: hardware, rods, clamps, clamp material for temperature, clearances, and the cold and hot settings on the travel scale.

06

Hydrotest and travel stops: the commissioning hazards

Springs are shipped with travel stops that lock them at the cold setting. They protect the spring during erection and carry hydrotest weight. Two opposite errors follow. If stops are removed before hydrotest, the water weight can drive the spring toward solid height, overload structure, and permanently change the spring. If stops are left in after hydrotest, the spring becomes a rigid support, and the first heat-up forces thermal growth against it.

Every travel stop should be tagged, listed on the punchlist, verified engaged before filling, and verified removed, by name and with a photograph, before warm-up. Startup should not proceed with any stop unaccounted for.

07

Cold walk and hot walk: reading the stress model in the field

The travel scale marks the design cold and hot positions. A cold walk before startup records the actual cold position, travel-stop status, rod alignment and hardware condition. A hot walk at stable operating temperature records the actual hot position, remaining travel and the behavior of adjacent supports. The comparison of design cold, actual cold, design hot and actual hot is the most useful single record a plant can keep on a spring.

Rod angularity matters. MSS SP-58 practice commonly limits rod swing to about 4 degrees from vertical. Beyond that, a rod hanger applies an unintended lateral force and bends at the threads, where fatigue resistance is lowest. Where horizontal movement is significant, the designer may offset the rod cold so it is near vertical hot, or use a roller or slide arrangement.

08

When the indicator is wrong: investigate before adjusting

The common field reaction to an out-of-position indicator is to turn the turnbuckle until the pointer looks right. That jacks the pipe. It imposes a displacement the analysis did not include and moves load to the nearest restraint or nozzle. The indicator is reporting the equilibrium of the system; the question is why that equilibrium changed.

• Confirm line condition: truly at steady operating temperature, pressure and flow, not mid-transient.
• Check the design settings on the current hanger schedule, not an old drawing.
• Check for travel stops, interference, rubbing or contact with structure.
• Inspect rods, turnbuckles, clamps and attachments for bending, slippage or cracking.
• Check adjacent supports for lift-off, binding or failure that has shifted load.
• Check for weight changes: insulation replacement, wet insulation, added valves, actuators or tie-ins.
• Check for structural settlement and modified guides or anchors.
• Review the stress model; measure loads or movements where needed.
• Determine the cause, then engineer the adjustment, rebalancing or replacement.
• Verify the result in both cold and hot conditions.

09

Machinery, nozzle loads and dynamic behavior

A spring hanger does not create excitation. Unbalance, misalignment, flow pulsation and vane-pass forces do. What a failed or seized support changes is the system: static loads on the nozzle, and the stiffness that sets natural frequencies, which for a simplified system scale with the square root of stiffness over mass. A bottomed spring or rigid contact can raise a span's frequency toward a running-speed or pulsation frequency.

Nozzle loads at pumps, compressors and steam turbines are limited by API 610, API 617, NEMA SM 23 and OEM data. Loads above those limits can distort casings and move bearings and seals off their intended alignment. The defensible statement is that incorrect support behavior can alter the static and dynamic load path and may contribute to vibration, misalignment, seal and bearing distress, or fatigue. Causation requires evidence: travel data, stress results and vibration data from platforms such as Bently Nevada System 1 or Emerson AMS Machinery Manager.

10

Environment: debris, corrosion, lubrication and cleaning

Spring supports sit in dust, rain, salt, chemical vapor and heat. Fly ash, coal dust, catalyst fines, blast grit and insulation debris collect in canister openings and between coils. Packed debris reduces free travel, so a spring can become coil-bound before reaching its design position. Water trapped in a canister with blocked drain openings keeps the lower coils and guide plate wet, accelerating corrosion. Pitting on high-strength spring wire is a fatigue initiation site. Seized turnbuckle threads make correct adjustment impossible when it is finally needed.

Lubrication must follow the manufacturer's instruction, nothing more. Helical coils have no sliding surfaces and should not be greased; grease holds grit. PTFE slide plates on base supports are designed to run dry; grease, oil or paint degrades them and raises friction. Some constant-support pivots and bearings use self-lubricating bushings; others call for a specified lubricant at a specified interval. Do not lubricate a support simply because it moves.

11

Inspection frequency and type by support

A uniform interval for every spring is not a strategy. Frequency should follow consequence, movement, cycling, environment, proximity to machinery and history. The structure below is a typical starting point; criticality and FMECA should then adjust it per population.

• Variable springs: indicator position, reserve travel, coil condition, debris, drains, rods and turnbuckles.
• Constant supports: position within the working scale, linkage and pivot condition, lubrication only if specified, structural attachment.
• Hydraulic snubbers: fluid level, leakage, rod condition, freedom for thermal movement; functional testing per program.
• Mechanical snubbers: freedom of slow movement, no drag or lock-up, attachment condition.
• Rigid hangers and guides: contact, lift-off, gaps, wear and binding.

12

Replacement and rebalancing

Replacing a failed spring with the same catalog number may reproduce the original error if the system has changed. Before replacement, confirm the design basis: current insulation, valves, contents, temperature and adjacent support condition. Where any of these changed, re-analyze. Where one spring is out, its neighbors are often out too; rebalancing may involve several supports. Install with stops engaged, set to the calculated cold position, remove stops under control, and verify cold and hot.

Spares strategy follows the installed base. Identify critical assemblies, long-lead constant supports, model standardization across units, and what parts are replaceable versus whole-assembly. Inventory belongs in SAP or Maximo; the consequence logic that decides what to stock comes from criticality and FMECA review.

13

The digital travel sheet: lifecycle traceability with QC Lite

Most plants hold spring data in five disconnected places: the stress report, vendor drawings, hydrotest punchlists, commissioning notebooks and operator logs. When an indicator drifts years later, nobody can tell whether it was set wrong, adjusted during a turnaround, or whether the line has migrated.

BPG QC Lite, a digital quality platform under development at BlackOut Power Group, is designed to carry each spring as a serialized record on a signed digital travel sheet through every stage of its life. Each gate records the required readings and photographs, names who performed and who accepted the step, and holds the next step until the current one is signed. The platform supports the process; the Responsible Engineer and the owner's procedures govern acceptance.

14

Building a Spring Hanger Integrity Program

Owners run formal programs for pressure equipment, relief devices and rotating machinery. Spring supports deserve the same: a Spring Hanger Integrity Program that sits within the asset integrity management system and makes the rules above enforceable, trained and auditable. Without it, the knowledge lives with one stress engineer and a few experienced millwrights, and it leaves when they do.

• Policy: a site or corporate standard adopting MSS SP-58 and the applicable ASME B31 code, naming the program owner and the Responsible Engineer for piping supports.
• Register: every spring, constant and snubber tagged by line and location in SAP S/4HANA Asset Management or IBM Maximo, with design data and documents attached.
• Criticality: populations ranked with BPG Criticality using line consequence, temperature, connected machinery, travel and history, to set inspection tiers. Criticality ranks attention; it does not size springs.
• Failure-mode strategy: BPG FMECA covering coil failure, corrosion, seizure, retained stops, topping and bottoming, wrong setting, misalignment and attachment cracking, with detection methods and intervals.
• Procedures: travel-stop control, cold and hot walk instructions, investigate-before-adjust, lubrication and cleaning rules, replacement and rebalancing.
• Competency: role-based qualification for operators, technicians, turnaround contractors and engineers, refreshed periodically.
• Management of change: insulation, valve or actuator changes, reroutes, tie-ins and temperature or service changes trigger a support review.
• Records: stress models, isometrics, hanger schedules, datasheets and survey history reconciled in the engineering document system, with BPG Engineering Records Intelligence supporting reconciliation where records disagree.
• Audit and improvement: percentage of springs in tolerance, open deviations, stops unaccounted at startup, and recurring offenders reported to management.

15

The do's and don'ts every site should publish

Rules that are not written down and trained are not rules. The following belong on the first page of the procedure and in every contractor induction for outage work on piping.

16

Toolchain by lifecycle stage

Each tool answers one question. The value lies in the handoffs: the stress model sets the requirement, the manufacturer selection meets it, the field record confirms it, and the maintenance system keeps it confirmed. BPG professionals work in the client's established platforms; the tools named are industry-standard examples, and equivalent systems can fill the same roles.

17

Design it. Set it. Observe it. Trend it. Investigate before adjusting it.

A spring hanger performs a simple-looking job inside a complex system: carry the intended load while allowing the intended movement. When either half of that function is lost, the consequence appears somewhere else, at another support, a flange, a weld, a branch connection or a machine nozzle.

Organizations that treat spring supports as an asset population, with a register, a criticality-based strategy, trained people, controlled procedures and a signed record of every reading, find these problems while they are still positions on a scale rather than cracks, leaks and trips.
