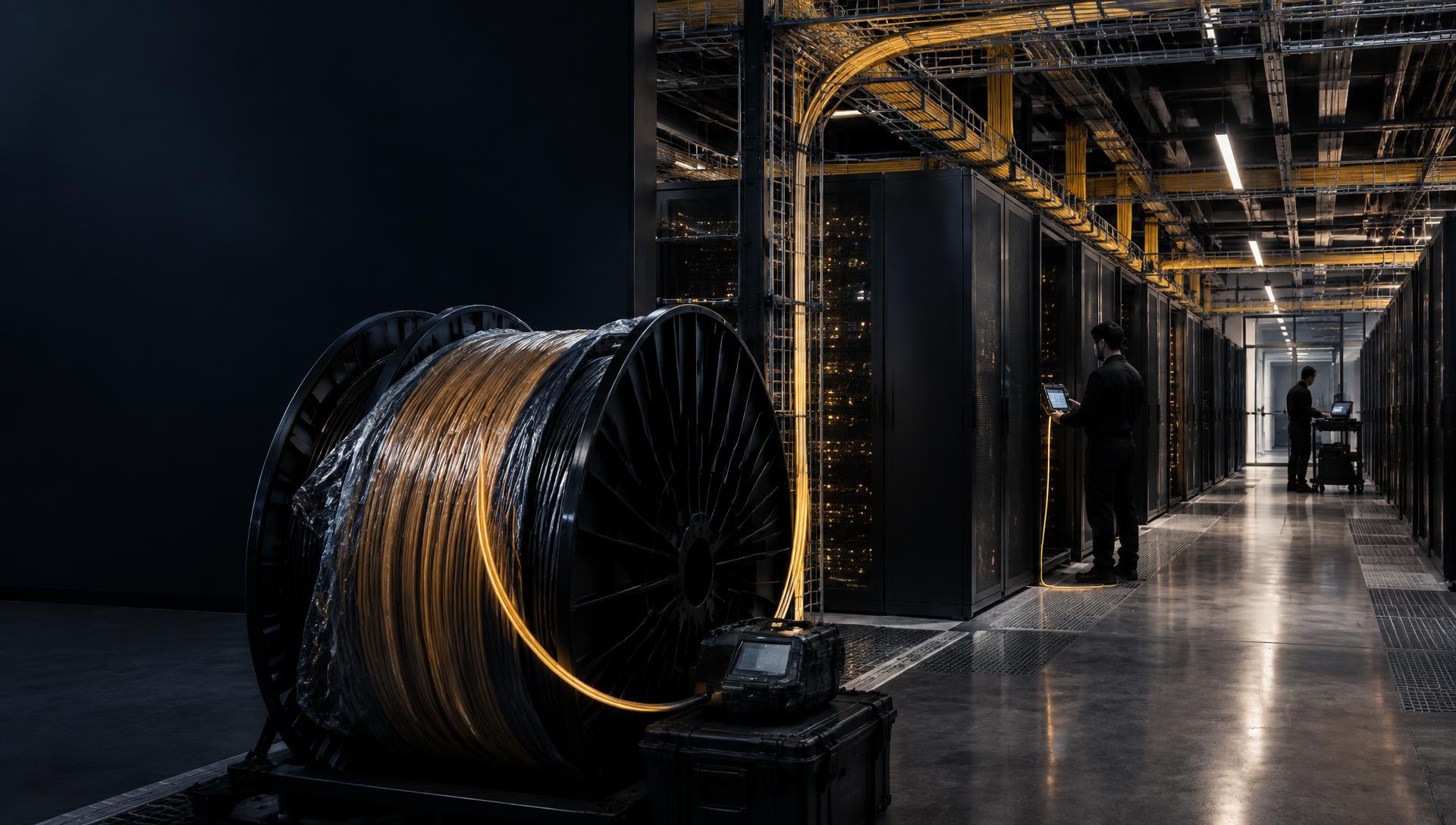

From Factory Lot to Live Data Hall: Engineering the Fiber Lifecycle to Prevent Latent Failure

01

The fiber passed. Did the lifecycle?

A basic continuity result answers one narrow question: light has a path from one end to the other. It does not establish that the cable retained its manufactured mechanical margin, that every event is within the project loss budget, that connectors are clean, that a pulling excursion did not create a bend-sensitive location, or that the evidence required for acceptance exists.

The attribution problem becomes acute after installation. If the factory record, custody history, receipt condition, pull record, splice evidence, and commissioning trace do not share the same reel and link identity, the parties can describe the final anomaly but cannot reliably place it in time. The objective is not only to find a defect. It is to establish when the defect entered the lifecycle.

A commissioning pass is a snapshot. Lifecycle assurance is an evidence chain.

02

Define the cable system before defining the assurance plan

There is no universal fiber assurance plan. Inside-plant structured cabling, preterminated trunks, campus inter-building links, and outside-plant reel cable do not share the same exposure or acceptance basis. Single-mode and multimode systems use different field measurement procedures. Field-spliced links create evidence needs that factory-terminated assemblies do not. Plenum, riser, indoor-outdoor, armored, loose-tube, and ribbon constructions respond differently to environment and handling.

The controlling hierarchy should be explicit: applicable code and authority requirements; the executed contract and project specification; issued-for-construction documents; referenced consensus standards; the cable and connectivity manufacturer’s published limits; and the approved inspection and test plan. Recommended engineering practice can close a risk gap, but it should not be represented as a code mandate.

Product qualification

Demonstrates that a cable design can satisfy defined mechanical or environmental requirements under a referenced test method.

Production quality control

Controls manufacturing variables and confirms production output against the manufacturer’s process and product requirements.

Factory release

Establishes whether the identified reel or assembly has the records and results required for shipment.

Field acceptance

Tests the installed cabling against project-defined limits and applicable measurement procedures.

Commissioning

Confirms that the completed optical path, labeling, records, interfaces, and operational baseline satisfy the owner’s acceptance plan.

Diagnostic testing

Locates or characterizes an anomaly. It does not automatically establish compliance or long-term reliability.

Destructive qualification

Examines retained material or mechanical condition when risk justifies sacrificing a representative sample under an approved protocol.

03

The control unit is the evidence chain

Every lifecycle phase should answer the same six questions: What is the requirement? What test or inspection addresses it? What acceptance criterion governs? What record proves the work? Is there a hold point? Who has authority to release the next stage? This converts quality from a collection of documents into a controlled decision process.

Traceability begins with the fiber manufacturer, fiber type, manufacturing lot, geometry and attenuation data, coating information, and proof-test certification. The practical question is whether the finished reel can be traced back to the fiber population from which it was produced. If that relationship is lost, later sampling and disposition become less precise.

04

Fiber proof testing screens mechanical weakness, not field performance

IEC 60793-1-30 describes a tensile proof-test method for optical fiber. It belongs to the manufacturing chain, where continuous fiber is subjected to a defined proof stress to screen mechanically weak sections. It is not an installed-link test, and this paper does not prescribe a universal proof stress. The specified level depends on the fiber, contract, applicable standard, and manufacturer’s qualification basis.

Manufacturing quality control can also address attenuation, cladding and coating geometry, concentricity, coating quality, optical characteristics, and strippability. These records answer different questions. Optical continuity and mechanical reliability are different characteristics. A fiber can transmit light while carrying less mechanical margin than the design and installation assumptions require.

05

Good fiber can still become bad cable

Cable manufacture adds buffers, tubes, strength members, water-blocking materials, armor where specified, and jackets around the optical fiber. Process tension, excess-fiber length, stranding control, tube geometry, jacket extrusion, cooling, winding tension, take-up, and reel handling can each affect the finished condition.

Potential concerns include microbending, internal stress, tube deformation, shrinkage, fiber protrusion, inadequate water blocking, strength-member problems, crush during take-up, and reel damage. The IEC 60794 family supplies test frameworks for cable mechanical and environmental qualification, including tensile, crush, impact, bending, torsion, temperature cycling, shrinkage, and water penetration where applicable. Qualification shows what a design can withstand. It does not replace production evidence for a specific reel.

06

Factory release should create an optical fingerprint

For critical reel cable, the release package should connect manufacturer, product designation, reel serial number, manufacturing batch, fiber lot, cable length, inspection status, qualification basis, required attenuation results, and any specified OTDR trace to the shipment identity. The exact package depends on the procurement specification and cable form.

That factory result becomes the optical fingerprint. It is not valuable because it is perfect or because every factory test matches a field test configuration. It is valuable because a later result can be normalized and compared against an earlier known point. The strongest test result is one that can be compared with an earlier baseline.

07

Logistics can be an engineering interval

For high-value reel-based shipments, particularly campus or outside-plant cable with long routes, transport controls may include sealed packaging, dispatch and arrival photography, GPS custody records, temperature logging, shock recording, and tilt indication. These controls should be selected from the cable construction, manufacturer limits, journey, handling method, duration, and consequence. They are not automatically required for every indoor assembly.

A timestamped event becomes useful when it can be correlated. If a temperature excursion begins while GPS shows a prolonged outdoor logistics-yard stop, the custody record identifies the responsible interval and the arrival inspection can decide whether protection was compromised, whether added testing is warranted, or whether the reel should remain on hold. The chain is event, time, location, custodian, technical disposition.

08

Weather and storage claims require qualification

Primary protection is the manufacturer- and project-compliant packaging, enclosure, end sealing, reel orientation, and storage environment. Records should capture arrival date, location, inside or outside storage, covering condition, ambient exposure, moisture, direct weather exposure, end-seal condition, movement between areas, and duration.

Sunlight does not automatically damage every cable. Risk depends on construction, jacket material, UV rating, temperature rating, packaging, dose, and elapsed time. A generic UVC indicator is not evidence of relevant solar dose. If exposure monitoring is proposed, the selected device must measure the spectrum and dose that matter to the material question. Recorded conditions must be compared with the cable manufacturer’s published storage limits.

09

Questionable history requires a disposition, not an assumption

A risk-based transport decision can be simple. Green means no relevant excursion or physical damage and the required records support release. Amber means damaged covering, questionable exposure, an abnormal logger event, or an unexplained record gap requiring engineering review. Red means major impact, compromised cable or reel, severe out-of-limit exposure, or an unexplained optical change requiring quarantine pending disposition.

Continuity does not convert an amber or red condition to green. Depending on the risk, a representative qualification program may include optical testing before and after controlled environmental or mechanical exposure, cable sectioning, jacket and tube examination, shrinkage or protrusion assessment, tensile sampling, bend or crush testing, or other methods selected from the cable design and suspected mechanism.

10

Sampling must represent the population at risk

One random short sample cannot prove hundreds of reels acceptable. Sampling should stratify the population by manufacturing lot, shipment, storage location, duration, environmental history, visible condition, and logger record. A suspect specimen is most informative when compared with a known-good control of equivalent design and production history where practical.

Every critical reel can receive traceability review, visual inspection, logger review where used, and a defined optical baseline. A representative suspect population can receive added environmental or mechanical qualification. A worst-case or disputed population may warrant destructive examination or laboratory work. The final outcomes remain accept, conditionally accept, test further, quarantine, or reject.

11

Receipt is the first comparison point

Site receipt should reconcile the reel ID and shipment record, inspect flanges and protective covering, verify cable-end seals, download applicable logger data, document condition photographically, and perform the optical tests required by the acceptance plan. The receipt result should be interpreted against the factory record, not as an isolated pass or fail.

Factory abnormality keeps manufacturing in the investigation interval. A clean factory trace followed by an abnormal receipt result directs attention to transportation and storage. A clean receipt trace followed by a post-pull change directs attention to installation. A post-splice change directs attention to the splice or termination interval. This timeline does not assign liability by itself, but it makes the technical inquiry narrower and more defensible.

12

No critical pull begins without an engineering hold point

The pre-installation review should confirm the manufacturer’s pulling limit, minimum bend radius in the applicable condition, route geometry, conduit condition, pulling direction, payout orientation, pulling eye and swivel, compatible lubricant, sheave size, intermediate pulls, installation temperature, and calibration status of tension-monitoring equipment. The approved installation method should identify who stops the pull and what event triggers that stop.

Installation evidence should connect the reel to the source and destination, route, date, installer, equipment, calibration, peak recorded tension where monitored, duration, environmental conditions, stoppages, anomalies, changes, and photographs. Sidewall pressure, crush, support forces, and local bend conditions should be evaluated where technically relevant. This is engineering QA/QC, not passive construction observation.

13

Splices and connectors require independent evidence

Fusion-splice control includes technician qualification, splicer and cleaver condition, cleaning, stripping, cleave quality, arc calibration, splice protection, tray routing, bend control, and enclosure sealing. The fusion splicer’s estimated loss is a process aid, not an independent final acceptance result. Where the project requires it, event loss should be characterized optically under the approved test method.

Connector contamination, oil, scratches, pits, end-face damage, and ferrule contamination can introduce loss and reflectance. IEC 61300-3-35 addresses visual inspection for applicable connector and transceiver interfaces. It does not measure insertion loss. The practical discipline is inspect, clean, inspect, connect. Visual acceptance and optical performance answer different questions.

14

Basic certification and OTDR characterization are complementary

Basic, often called Tier 1, certification uses the applicable single-mode or multimode field measurement procedure to establish items such as insertion loss, length, polarity, and continuity as required by the project. In this paper, Tier 1 and Tier 2 refer only to fiber field-testing categories. They are unrelated to Uptime Institute Tier I through Tier IV facility classifications.

OTDR characterization adds distance-resolved information about reflective and non-reflective events, connectors, splices, attenuation, macrobends, and localized anomalies. Longer single-mode wavelengths can be more sensitive to bend effects, but no link automatically requires every wavelength. Bidirectional measurement can improve event-loss accuracy where backscatter differences would distort a one-direction result. The owner specification, TIA or ISO/IEC basis, manufacturer requirements, and acceptance plan should determine wavelengths, directions, reference method, and limits.

Appropriate launch and receive fibers help move the near- and far-end connections outside OTDR dead zones. Without them, the trace may not characterize the end connectors the acceptance decision depends on.

15

Commissioning creates the operational baseline

The accepted package should retain the final optical loss result, required OTDR traces, connector inspection record, splice event table, polarity, installed length, link designation, source reel, pathway and as-built relationship, commissioning date, test equipment identity, and calibration status. The project should also retain approved deviations and the engineering basis for each disposition.

The final data is not just closeout paperwork. It is the reference against which future maintenance, capacity changes, intermittent errors, warranty questions, and failure investigations can be compared.

16

Tools capability follows the technical question

BPG experts use and evaluate industry-standard tools and test methods appropriate to the assurance or investigation scope. The instrument category, setup, reference method, calibration status, native file, and operator qualification matter more than a brand name. Mention of a manufacturer does not imply ownership, exclusivity, or endorsement.

Factory and laboratory work can involve attenuation and geometry systems, proof-test equipment, tensile machines, environmental chambers, cable bend and crush fixtures, microscopes, and sectioning equipment. Field optical work can involve OLTS, optical sources and power meters, OTDR, visual fault locators, and automated connector inspection systems. Established platforms may include equipment from Fluke Networks, EXFO, VIAVI, AFL, Fujikura, Sumitomo, or comparable manufacturers where suitable to the approved method.

Installation controls can include calibrated dynamometers or pulling-tension monitors, reel stands, winches, bend-radius gauges, route inspection equipment, and photographic records. Transport controls can include temperature, shock, impact, orientation, GPS, and seal systems selected for the actual risk. Engineering Records Intelligence and TerraTolga Vault Compare organize and compare the resulting evidence without substituting software output for engineering review.

17

Standards define methods and boundaries, not one universal checklist

IEC 60793-1-30 applies to fiber proof testing in manufacture. The IEC 60794 family contains cable specifications and mechanical or environmental test procedures selected by cable type and qualification purpose. IEC 61300-3-35 addresses connector end-face visual inspection. ANSI/TIA-568.3-E, applicable TIA-526 procedures, ISO/IEC 11801, and ISO/IEC 14763-3 address cabling requirements and installed optical testing within their scopes.

Telcordia GR-20 and GR-326 can provide carrier-oriented cable or connector qualification references when contractually selected, but they are not universal data-center mandates. NFPA 70 Article 770 addresses optical fiber cables and raceways, while Article 645 addresses information technology equipment rooms under its conditions. NFPA 75 and 76 provide facility fire-protection context, not OTDR, connector, or insertion-loss procedures.

Mandatory by code

The edition adopted by the authority having jurisdiction, applied to the installation and occupancy within its scope.

Required by contract

Owner specifications, executed contract documents, issued-for-construction details, approved submittals, and the inspection and test plan.

Consensus standard

A referenced IEC, TIA, ISO/IEC, NFPA, or other method that becomes controlling only through adoption, contract, or applicable regulation.

Manufacturer requirement

Published limits for storage, installation temperature, pulling tension, bend radius, crush, handling, and compatibility for the selected product.

Engineering practice

Additional risk controls proposed for the project and documented as recommendations rather than misrepresented as code.

18

The Digital Cable Passport

A Digital Cable Passport connects manufacturer, fiber lot, cable lot, reel serial number, factory testing, shipment and custody evidence, environmental records, storage history, receipt testing, pull record, splice record, connector inspection, final OLTS, final OTDR, nonconformances, and commissioning acceptance under one link identity.

BlackOut Power Engineering Records Intelligence can structure certificates, traces, logger files, photographs, installation records, NCRs, and handover evidence. TerraTolga PDF / Vault Compare can compare factory certificates, manufacturer specifications, revisions, and construction documents. These tools accelerate organization and comparison. Accountable engineers still validate the evidence and approve the disposition.

19

Illustrative failure modes across the lifecycle

The table identifies technically supportable examples. It is not a universal failure list or a substitute for a cable-specific FMECA.

20

Who owns the work, and who verifies it

The manufacturer remains responsible for the product and its records. The logistics provider remains responsible for custody and handling. The installer remains responsible for installation. The testing contractor remains responsible for test execution and records. The commissioning agent retains the role assigned by the project. BPG does not replace those contractual duties.

BPG provides the independent technical assurance layer across the interfaces: requirements and ITP review, witness and hold points, record reconciliation, anomaly triage, acceptance-criteria review, NCR support, engineering disposition, and commissioning acceptance support for the owner.

21

An illustrative logistics exception

Consider a hypothetical shipment of critical single-mode reel cable that leaves the factory with identified reels and clean baseline records. During transport, one reel records a significant impact and another records an abnormal temperature excursion during a prolonged logistics-yard stop. Both still pass continuity at receipt.

Continuity is not used to erase the exceptions. The reels are isolated, logger and custody records are preserved, receipt traces are compared with factory baselines, reel and cable condition are inspected, and the engineer decides whether additional environmental or mechanical qualification is warranted. The monitoring system has identified uncertainty before construction converts it into embedded risk. No numerical result or actual BPG project is implied by this scenario.

22

What an institutional owner should ask before acceptance

The strength of the handover can be tested with direct questions.

• Can every critical reel and installed link be traced to its manufacturing and factory-release records?
• Was transport and storage monitoring selected from a documented risk basis, and were exceptions dispositioned?
• Was the cable tested at the required transfer points before the next interval concealed the evidence?
• Were route, pulling method, bend limits, tension equipment, and stop authority verified before installation?
• Are splice, connector, OLTS, and OTDR records linked to the final link designation and as-built pathway?
• Can the commissioning trace be compared with factory, receipt, and post-pull evidence on a technically valid basis?
• Are NCRs, deviations, calibration records, and final acceptance decisions complete in the handover package?

23

The cost is in access, schedule, and consequence

The raw cable can represent a small share of project cost. Correcting a latent defect after installation may not. Remediation can require pathway access, live-system restrictions, congestion management, repulling, resplicing, retermination, retesting, contractor remobilization, schedule recovery, and delayed capacity availability. The economic consequence depends on the project and should not be reduced to an unsupported cost multiplier.

Most participants see one interval. The fiber or cable manufacturer sees production. The carrier sees transport. The general and low-voltage contractors see construction. The testing contractor sees acceptance tests. The commissioning team sees final system performance. The data-center owner inherits all of it. BlackOut Power Group provides the independent engineering layer that follows the evidence across those boundaries.

24

Responsible Engineer review is part of release

Before BPG releases a conclusion, a Responsible Engineer outside the primary discipline independently challenges the acceptance criteria, assumptions, sampling logic, logger interpretation, optical-test interpretation, deviations, quarantine or release decisions, and final engineering judgment. This review is mandatory BPG procedure.

Factory proves the identified product met its release basis. Logistics documents whether it was protected. Installation documents whether it was handled within the approved method. Commissioning establishes whether the completed link meets the acceptance plan. BPG connects the evidence across all four without guaranteeing that no future failure can occur.
